After the success of my enXLosure for Prusa XL, I am excited to announce my latest Project;

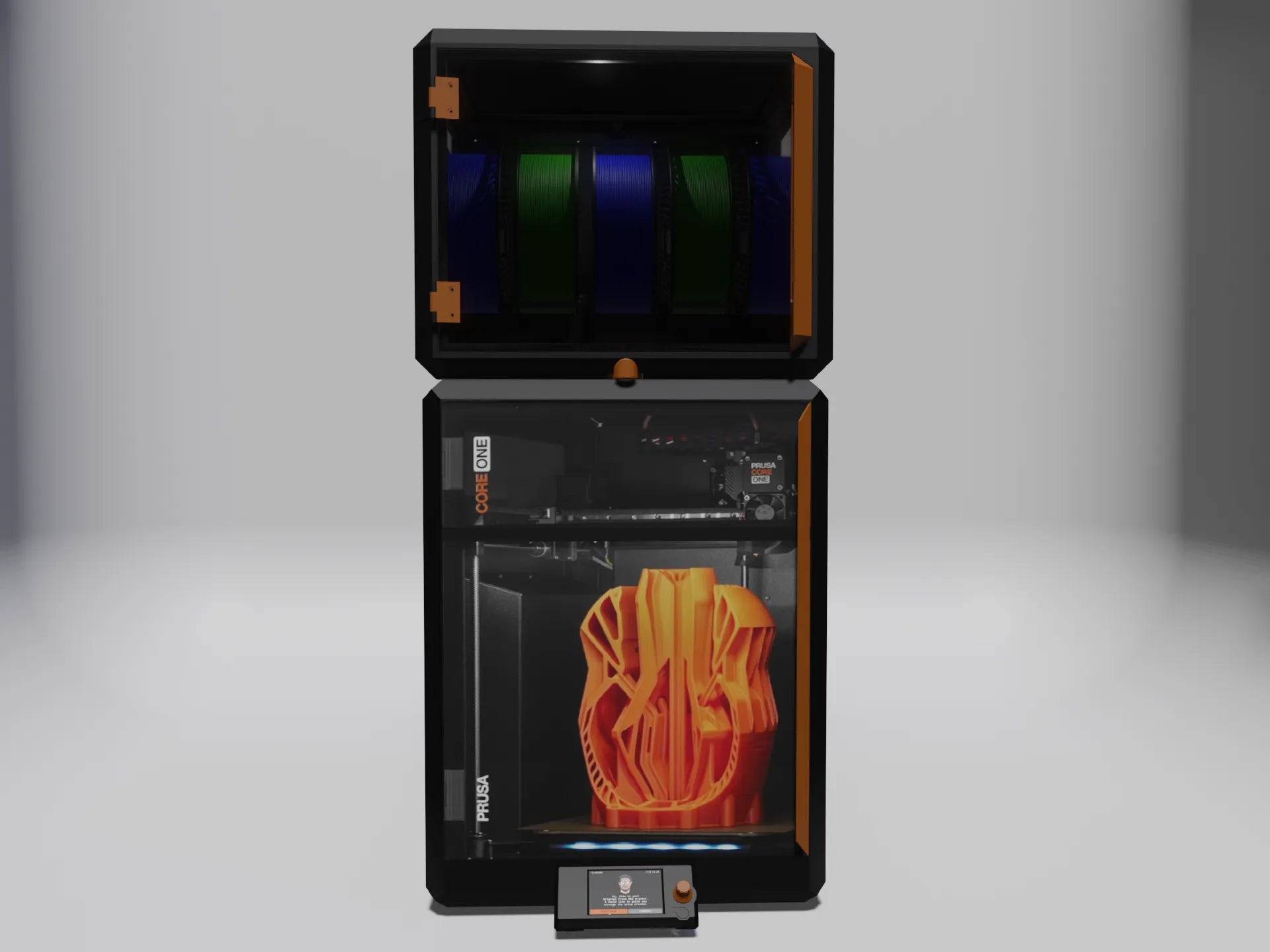

COREBOXX → The Filament Storage System for Prusa CORE one!

COREBOXX is an all-in-one platform for neatly storing, organising, and managing filament. It is fully printable on the CORE one itself and is extremely easy to build and assemble, with very few required parts.

It is designed to fit neatly into the Prusa CORE design language while retaining all the printer's functionality.

----------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------

This is the Standard version which;

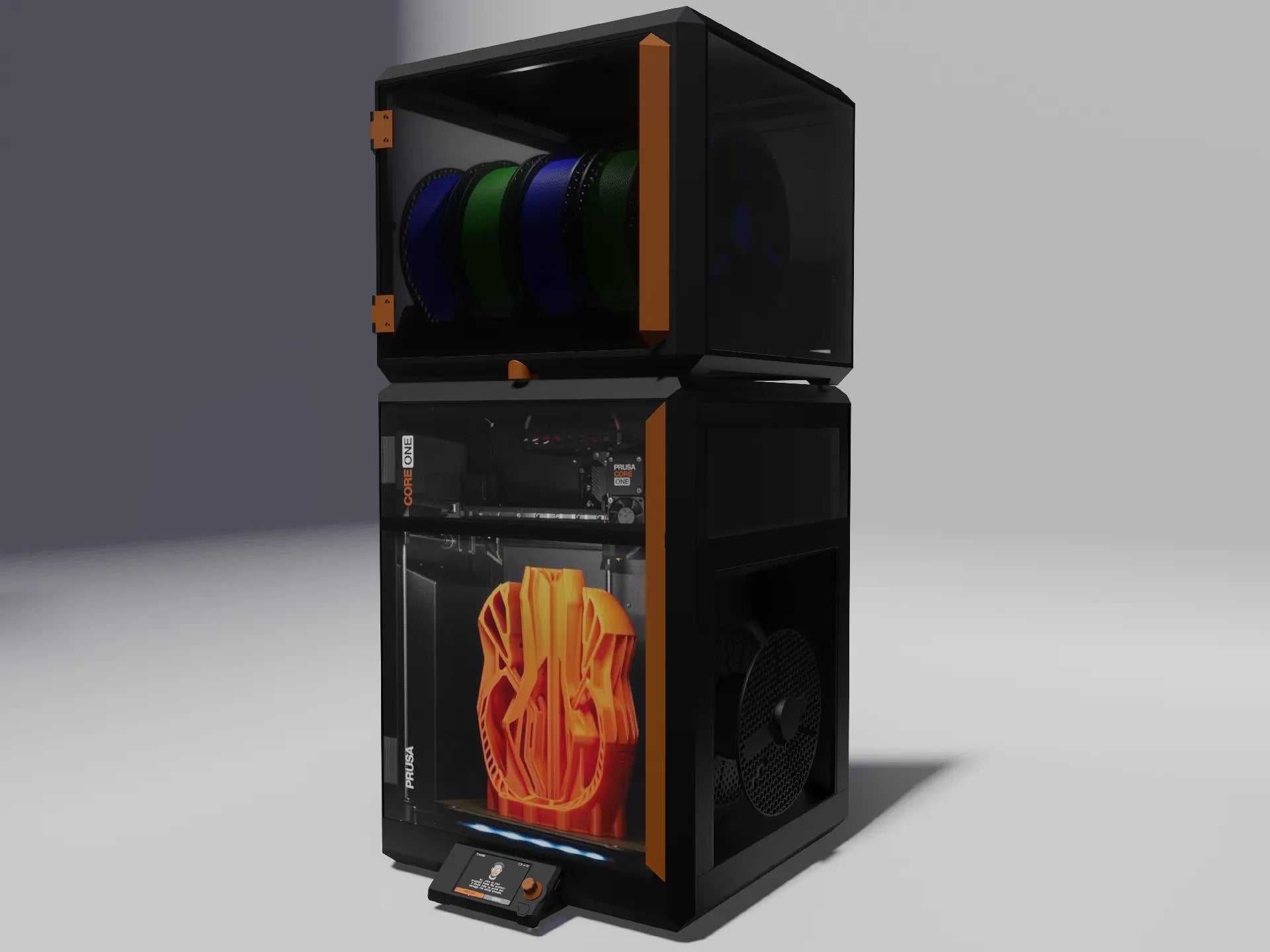

• Mounts on top of the CORE one machine, or sits aside the machine on the desk
• Supports  5 spools of 1kg filament (up to 72mm in width)
• Keeps all functionality of CORE one (including front access to chamber vents)
• Is fully 3D printable on CORE one itself.
• Is designed to feel and look in-line with the design language of CORE ONE.

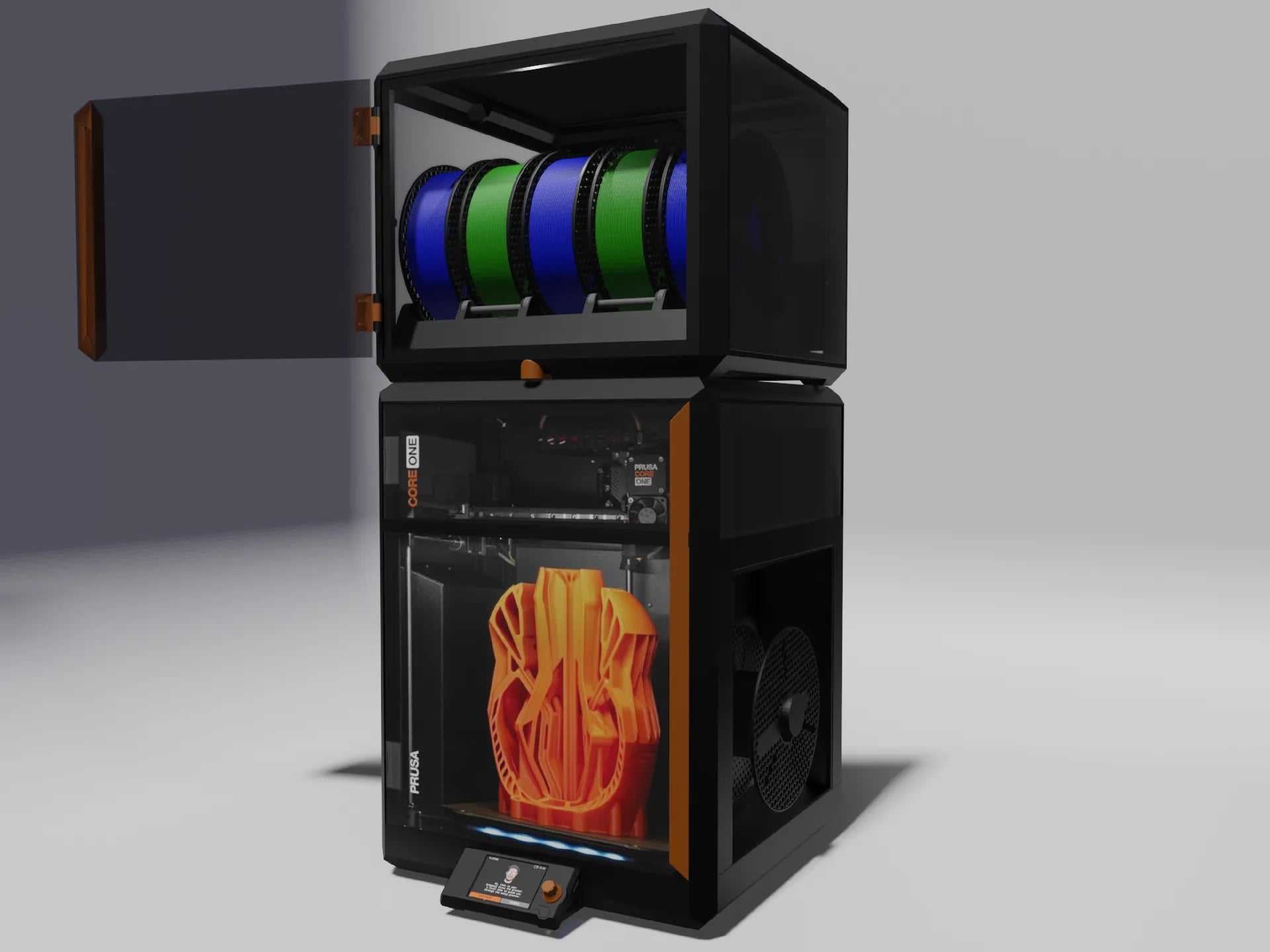

• Has a full-access door that closes magnetically
• Has a strong frame design, which mounts with sturdy heat set inserts

There is also a premium version available (paid model) which adds;

• Magnetic mounting to the CORE one frame
• Full support for in-built MMU3 with built-in passive buffer system
• A service hatch to easily maintain the MMU when necessary, without removing a bolt.
• Extra mounting points for future accessories
• Short MMU to nextruder bowden tube of 52,5cm
• Passive, rewinding spoolholders for neat MMU buffering
• STEP files for easy modding
• Pre-sliced gcodes
• Fully prepared Prusaslicer project files

----------------------------------------------------------------------------------------------------

Printing instructions;

All 3D printed parts are pre-oriented to print most optimally. To make sure the parts are strong, please use the uploaded prusaslicer project files or gcodes.
If you slice the files yourself, please make sure to have at least 3 perimeters and 25% homogeneous infill (cubic or gyroid). Also, make sure that all wall thicknesses are a minimum of 0.7mm thick, and that the “ensure vertical wall thickness” option is enabled.

If you print this on a machine with a 300mm or larger bed, you can re-orient the frame parts to print without supports.

Total printing time;

• Main color → 4days, 12hrs - Split over 5 gcodes
• Secondary color → 7hrs, 16min - Split over 2 gcodes

Total printing material;

• Main color → 2.6 Kgs
• Secondary color → 160 grams

Building instructions;

I made a detailed, 57-page build-/ user manual that can be found here;
https://drive.google.com/file/coreboxx manual

----------------------------------------------------------------------------------------------------

Hardware list;

• All panels (3mm acrylic, bottom_panel 5mm)
• All frame parts, 3D printed in PETG (please adjust scale for shrinkage)
• All accessory parts (3D printed in PETG, accent color)
• All panels (3mm acrylic, bottom_panel 5mm)
• 90x M3x8 bolt (SBHC most visually appealing)
• 88x M3 heat-set insert (M3 x 5d x 4h)
• 4x M3 locknut
• 20x 686 ZZ bearings (6 x 13 x 5)
• 10x shaft of 6mm diameter, 80mm length
• 11x PC4-M6 PTFE tube coupler. (thru feed)
• 3m PTFE tubing (2,5mm ID, 4mm OD)
• 4x 6x3mm neodymium magnet

Tools;

• Screwdriver (Same type as your bolts)
• Superglue
• Soldering iron, (Heatset tool recommended)

Hardware kit

If you do not want to deal with the hassle of self-sourcing all parts, or do not have access to a lasercutter, we made kits available for purchase ($99) via;
    - Aliexpress;  COREBOXX kit - via Aliexpress
    - Blurolls direct store (5% savings);  COREBOXX kit - via Blurolls

We will have kits available from warehouses in the EU and USA soon.
Kits are checked and use high-quality polycarbonate, fasteners, and lead-free inserts.

I do get some compensation from all sales made, so buying the kits supports me as a creator

----------------------------------------------------------------------------------------------------
